MyVet Imaging
Veterinary Intraoral Imaging Solutions
The MyVet intraoral DR system is the ideal veterinary dental imaging solution. It delivers superior diagnostic images essential for successful diagnosis and endodontic treatment.
Our CMOS technology provides comparable or even better image resolution compared to x-ray dental film or dental CR plates to provide maximum diagnostic information for facilitate better treatment plans and clinical outcomes. Featuring unparalleled durability, image quality and intuitive EzSensor software, increased workflow efficiency and diagnostic accuracy are achieved at a low cost of ownership.
- EzSensor Vet | Veterinary intraoral CMOS sensors Download brochure
- EzRay Air Vet | Portable Intraoral x-ray system Download brochure
- EzRay Vet Cart | Mobile intraoral x-ray cart Download brochure
- EzRay Vet Premium | Wall mount x-ray system Download brochure
- MyVet Dent | Veterinary dental imaging acquisition software
EzSensor Vet Veterinary Intraoral CMOS sensors
MyVet's intraoral sensor delivers superior diagnostic images essential for successful diagnosis, endodontic treatment. Round corners, smooth edges, and a reinforced fiber optic cable connection are the results of design that focuses on patient comfort and product durability.
- Superior image obtained with CMOS technology
- Slim design for easy positioning
- IP68 water and dust protection
- Fiber optic cable connector
| Parameter | Description |
|---|---|
| Dectector Structure | Low Noise Hybrid CMOS |
| Dimensions (W x L x T) | EzSensor 2.0 (1.24 x 1.69 x 0.19 inch) |
| Pixel Size | 29.6µm |
| Theoretical Resolution | 16.8 lp/mm |
| Active Pixel Array | 1216 x 878 pixels (Bining Mode) |
| Waterproof | IP68 |
| Data output(Interface) | Direct USB(USB 2.0) |
| Cable Length | 8.6 Feet |
* Specifications subject to change without prior notice *
Sensor dimensions and options
| Size 1.0 for CAT | Size 1.5 | Size 2.0 | |
|---|---|---|---|
| Active Area | 20 x 30mm | 24 x 33mm | 26 x 36mm |
| Dimension | 25.4 x 36.8mm | 29.2 x 39.5mm | 31.3 x 42.9mm |
| Thickness | 4.8mm | ||
EzRay Vet™ Cart Mobile Intraoral X-Ray Cart System
EzRay vet™ cart, the mobile dental x-ray cart system expedites your veterinary dental treatment procedure and provides trouble-free workflow by minimizing anesthesia risks or restraint injuries.
Clinical benefit
- Lower dose due to CNT(Carbon nanotubes) x-ray technology. Maximum exposure time reduced by 75% to animal and user while maintaining optimal image quality.
- Smart angulation exposure setting control maintains consistent image density whenever tube head is angled by automatically adjusting exposure setting.
- Image quality maximized with narrow, focused beams directed at a 0.4mm focal spot.
Workflow advantage
- Compact, lightweight, one-hand control tube head and Non-drift head.
- Preset technique per animal size – Simple dialing and shoot.
- Like turning on a light bulb, No warm-up time required. No waiting time for next shoot.
Animal comfort
- Easy to position tube head with one-hand control results in reduced time under anesthesia or in restraints during an NAD dental procedure.
- Lower exposure levels required for animal during an dental imaging procedure.

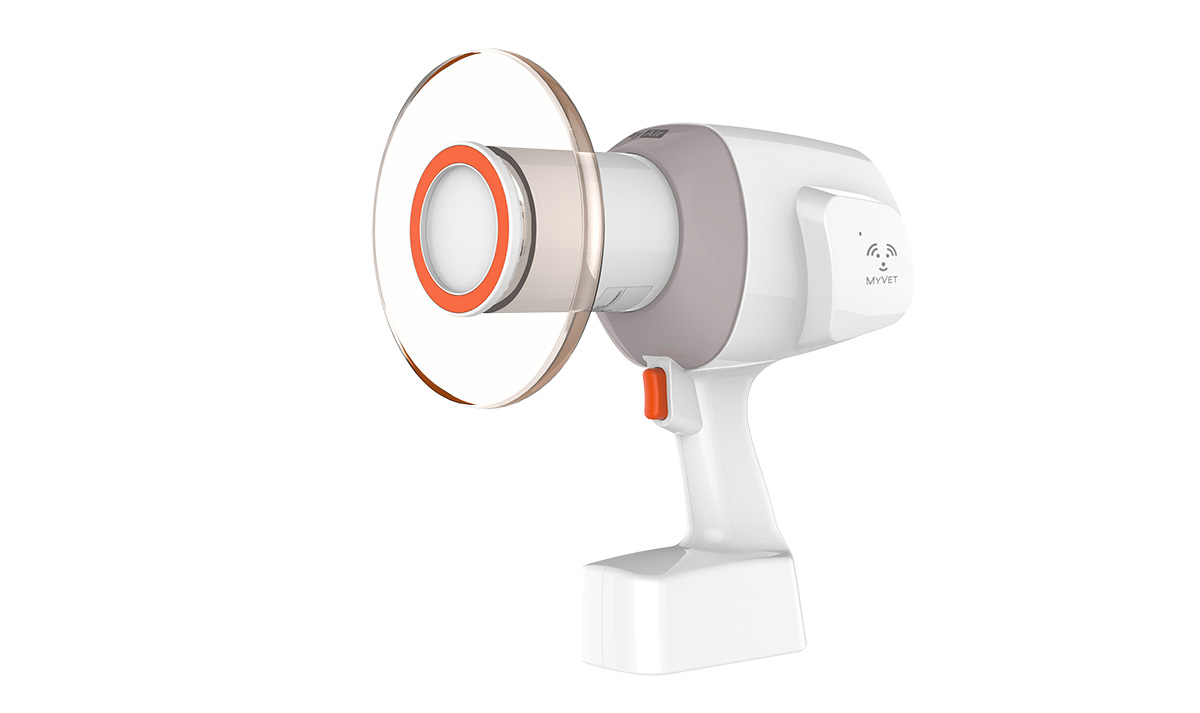

EzRay Air Vet
No Delay Time! 1.8kg Portable X-ray
WEIGHT INNOVATION: 1.8 KG
EzRay Air Portable Type, a light portable X-ray with 1.8 kg, makes stable condition for positioning the device. It satisfies all primary dental diagnostic needs by creating stable and clear images at all times.
ESSENTIAL SAFETY: DOUBLE PROTECTION DESIGN
Internal Shielding
The internal radiation shielding is perfectly designed to protect the operator from leakage radiation.
External Backscatter Shielding
The backscatter shield significantly reduces the operator’s radiation dose.

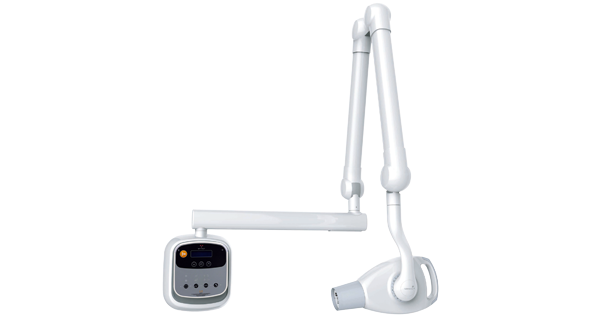

EzRay Premium Vet Wall Mount X-Ray Veterinary Intraoral X-Ray Imaging System
Make your practice extraordinary
The ergonomically designed x-ray tube head can be positioned at any anatomical imaging position. In addition, the strong and stable arm produces distortion-free images and allows simple positioning.
- High contrast and super clear image
- Easy move and anti-drift arms
- Detachable control panel
- Lightweight tube head
- Easy grip with ergonomic handle
MyVet Dent Veterinary Intraoral Imaging Acquisition Software
MyVet user-friendly veterinary dental imaging software quickly acquires, processes, and manages high quality, diagnostic images. Real-time digital imaging drastically shortens treatment time by eliminating the need to process and develop film. Customizable features and tools lets veterinarians tailor software to their specific needs.
All functionality of the workstations and software are designed to allow the user to quickly and efficiently move the animal through the imaging process to proceed to the treatment phase of animal care.
- DICOM-compliant system
- Easy integration into the existing clinical network
- Real-time viewing of high quality images
- Fully integrated solution
Clinical Imaging
Deciduous teeth imaging
Periodontitis diagnosis (internal image)
Periodontitis diagnosis (external image)
