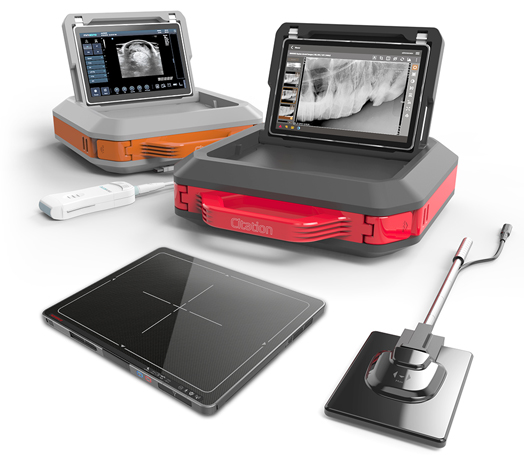

Citation Portable Equine Imaging Workstation

All the essential imaging tools an equine practitioner needs to portably acquire optimal clinical results in an easy-to-carry case. Equine practitioners can provide more complete onsite treatments from diagnoses obtained with maximum image quality and workflow efficiency for a more positive experience.

Clinical benefits | Accurate diagnosis

  • 70 μm pixel pitch of the I/O sensor offers superior image quality
  • Wireless DR imaging acquisition
  • Equine-specific image processing
  • DR and Ultrasound diagnosis software in one PC

Workflow | Portable and expandable

  • 3-in-one rugged case with detachable tablet PC flap
  • Easy to read, ultra bright touch screen display
  • IP 68 rating under all working conditions

Animal comfort | Handy operation reduces animal stress

  • Equine specific simple and intuitive software interface
  • Fast acquisition (< 2 sec preview time, < 5 sec cycle time)
  • Wireless alignment sensor reduces repeat images
Download Brochure Product Inquiry
Dental Solution


MAXIMUM CLINICAL INFORMATION FROM MAXIMUM IMAGE QUALITY

Features

EzRay Vet Premium

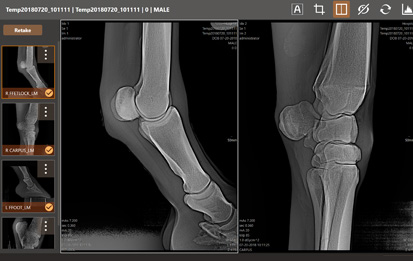

Diagnostic image acquisition

Contrast-enhancing image processing to emulate conventional X-ray grid contrast improvement

  • 10x12 inch wireless flat panel DR detector provides maximum diagnostic images
  • Tablet PC with MyVet Imaging Equine software
  • Detector protection case and batteries
EzRay Vet Premium

Intraoral examinations

Equine-specific image processing algorithm for CMOS intraoral sensor

  • 4x6 inch CMOS intraoral sensor improves root visualization by reducing structure superimposition
  • USB interface cable
  • Positioning handle and silicon sensor cover included
EzRay Vet Premium

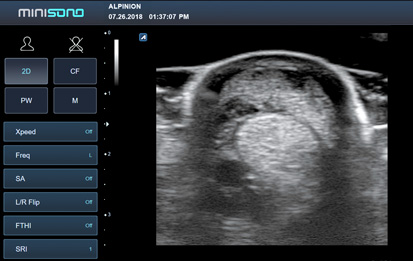

Soft tissue evaluation

Optimized ultrasound image processing for soft tissue evaluation

  • Linear transducer: 3-12 MHz
  • Multiple imaging modes and processing
  • Image acquisition software
  • USB interface cable

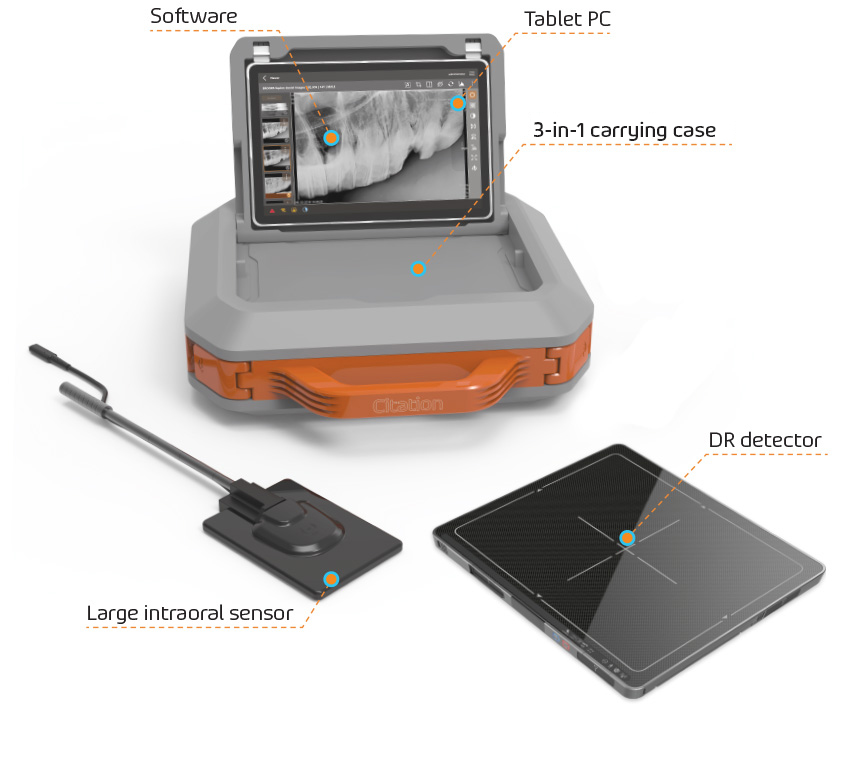

Configuration

Expandable configuration determines levels of individual workflow preference

Carrying case
  • 17.5 x 19.5 x 4.8 inch
  • Durable case in multi color
  • Detachble tablet PC flap
Tablet PC
  • 12.3" diagonal ultra-slim LED-backlit
  • Multi-Touch Display
  • 7th Generation Intel Core processors
  • Battery life: up to 10 hours
DR detector
  • 12.9 x 10.6 x 0.6 inch
  • Pixel pitch: 127 µm
  • Effective pixel matrix: 2264 x 1752 pixels
  • Weight: 3.7 lbs(including battery)
  • Protection case included
Intraoral CMOS sensor
  • Dimensions: 4.5 x 6.7 x 4.3 inch
  • Pixel pitch: 70 µm
  • Active pixel array: 1472 x 2172 pixels
  • Data output: USB 3.1C
EzRay Vet Premium

The specifications listed on this website are subject to change without prior notification.
